Frame Wafer EFEM – Reliable EFEM Frame Module for 4

This FORTREND Frame EFEM front - end automation module features high cleanliness, high compatibility, and a self - developed centering mechanism.

It offers a wafer loading system with options like the Frame Wafer Loadport and Frame Open Cassette Stage.

It supports 4 - to 12 - inch Frame wafers, and can be equipped with a high - precision self - developed centering device, as well as clamping or vacuum - suction - type robot hands.

It can handle both Frame Wafer and standard wafer.

Its internal cleanliness can reach up to ISO Class 1.

It is compatible with all FOUP, FOSB, SMIF POD and Cassette that meet SEMI standards.

It has outstanding COO and COC, helping customers reduce costs and improve efficiency.

It also has customization capabilities and can be designed according to customer requirements.

With 45 years of semiconductor industry experience and validation, it complies with the SECS/GEM standard communication protocol for semiconductor factories.

Modular design for easy and quick installation and maintenance.

Many safety and anti - misoperation designs ensure normal equipment operation.

Services include installation, onsite training, global support, and various cost - effective long - term maintenance contracts.

CUSTOMIZED PLAN

OPTIONAL SPECIAL MODULE			OPTIONAL LOADING PORT MODULE

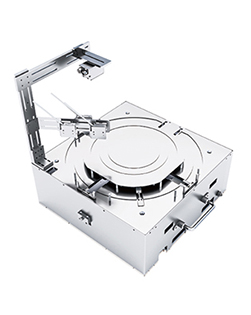

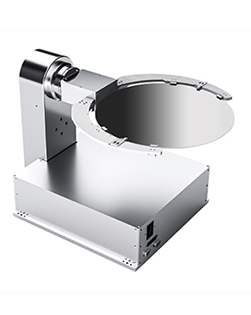

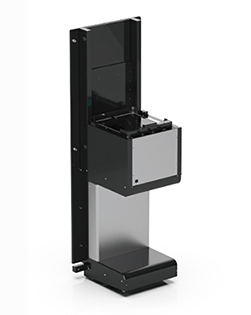

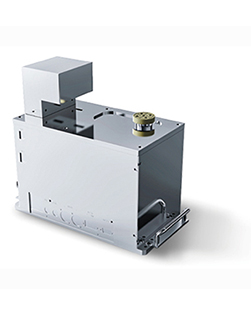

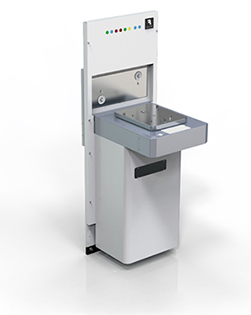

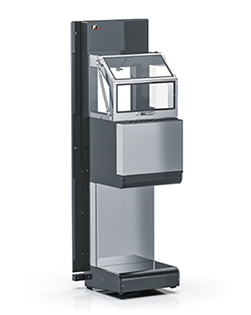

ALIGNMENT MECHANISM, WAFER ALIGNER		TALLER LAYER OPTIONAL EQUIPMENT	300mm LoadPort
					-
ALIGNMENT MECHANISM	WAFER ALIGNER		300mm LoadPort	Frame LoadPort
FLIP MECHANISM, COOLING BUFFER			100mm/150mm/200mm LoadPort

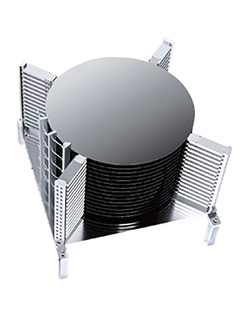

FLIP MECHANISM	COOLING BUFFER	100-500mm	SMIF POD	Open Cassette Stage	Adaptor

OPTIONAL ROBOT MODULE

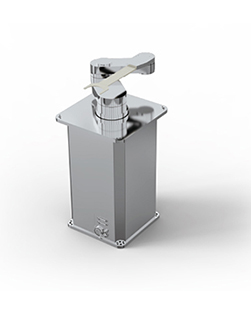

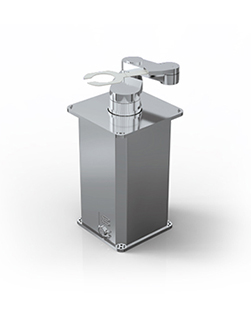

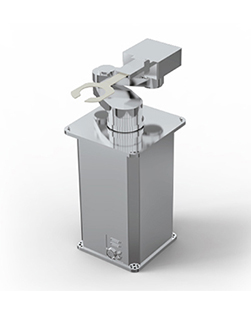

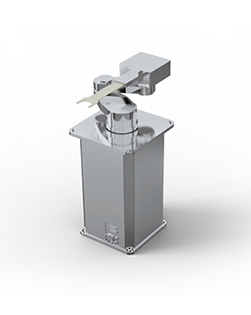

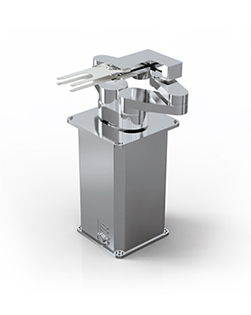

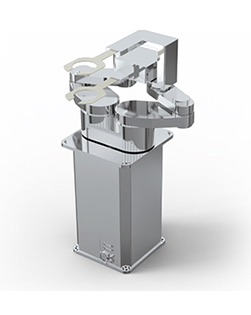

THREE-AXIS ROBOTIC ARM			FOUR-AXIS AND TWO ARMS ROBOTIC ARMS

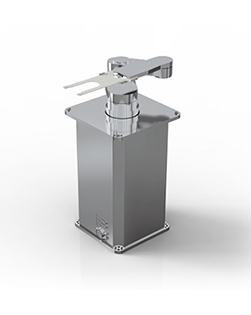

Vacuum single-arm robotic arm	Bernoulli single-arm robotic arm	Edge clip-holding / clamping supporting robotic arm	Vacuum adsorbing arms robot	Contact-type Bernoluli-type arms robot	Edge clamping / clamping drag-lifing arms robot

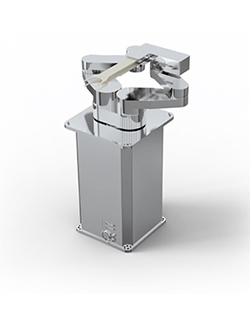

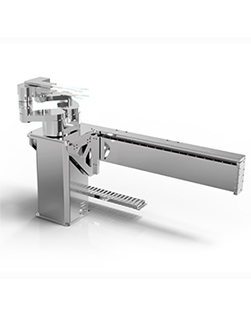

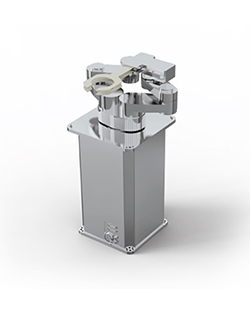

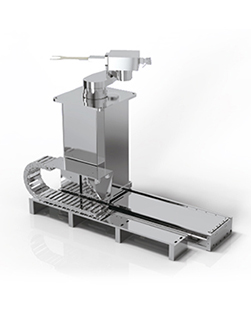

FOUR-AXIS SINGLE-ARM ROBOTIC ARM		FIVE-AXIS AND TWO ARMS ROBOTIC ARMS		SELECT THE TRACK AXIS FOR 2–4 LOADPORT PASSAGE, COOPERATING WITH THE ROBOT

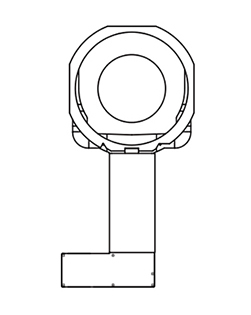

Vacuum adsorbing arms robot	Contact-type Bernoulli FLlP single-arm robot	Vacuum adsorbing arms FLIP robot	Contact-type Berunley-type arms FLIP robot	Drilleration diagram	Signate track schematic diagram
FORK SERIES

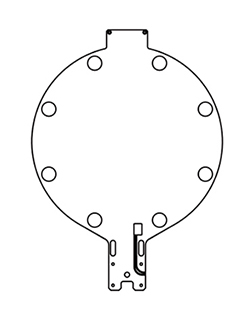

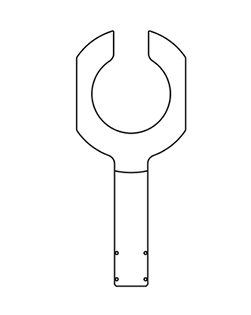

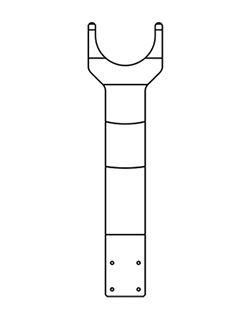

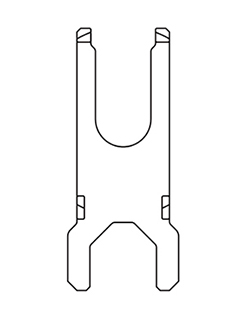

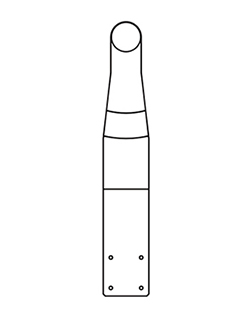

Vacuum Fork-Y type	Vacuum Fork-One font	Non-Contact Bernoulli	Contact Bernoulli	Clamp Type (Optional on 6/8/12)	Clamp Type Fork
