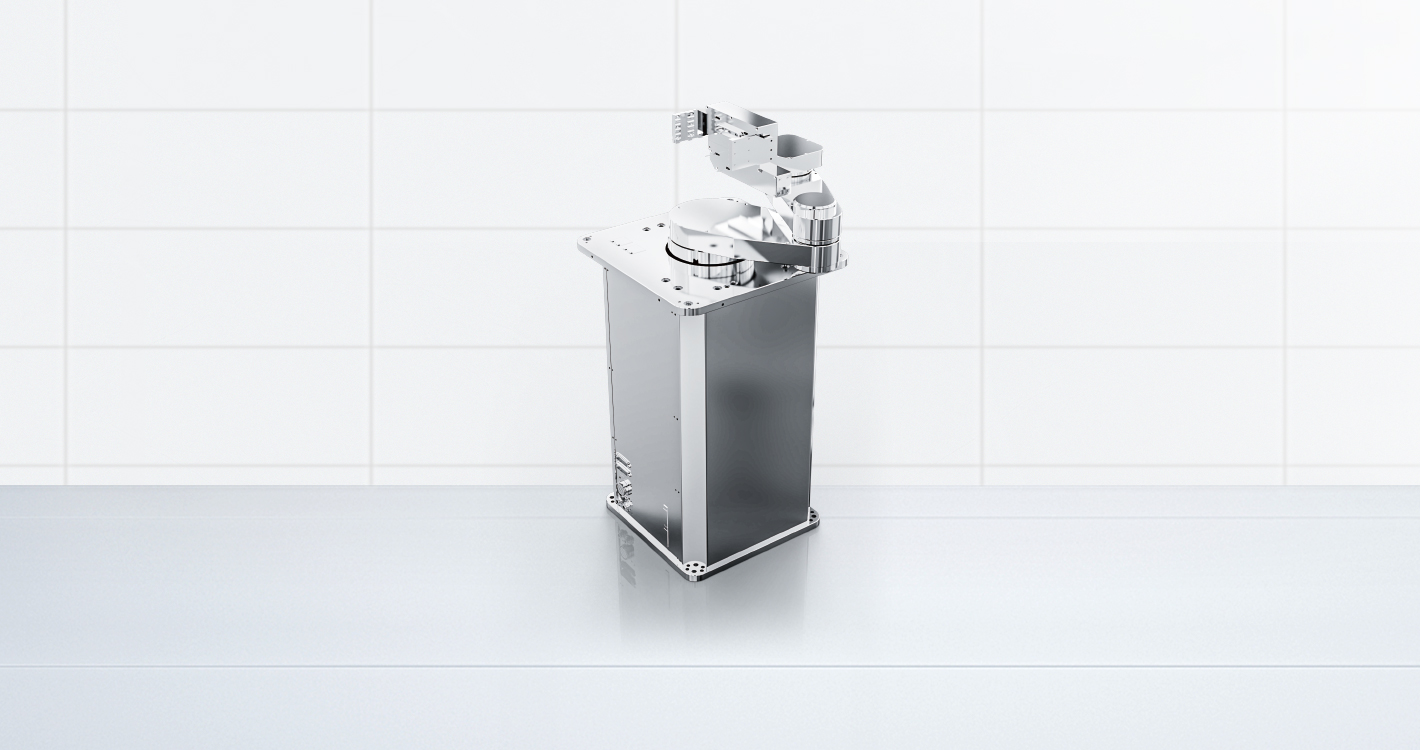

4-AXIS PLP ROBOT-FORTREND

The PLP robot is designed for the FO-PLP (Fan-Out Panel Level Package) process, mainly used for the handling of glass substrates with a size of 515*10mm, maximum handling size of 600*600mm, and the maximum handling weight up to 4Kg. The transmission is efficient and stable, with high cleanliness. The control method uses closed-loop servo control, ensuring the efficiency and yield of products in the packaging process.

Product Specifications

Handling Items	515*510mm Glass Substrate

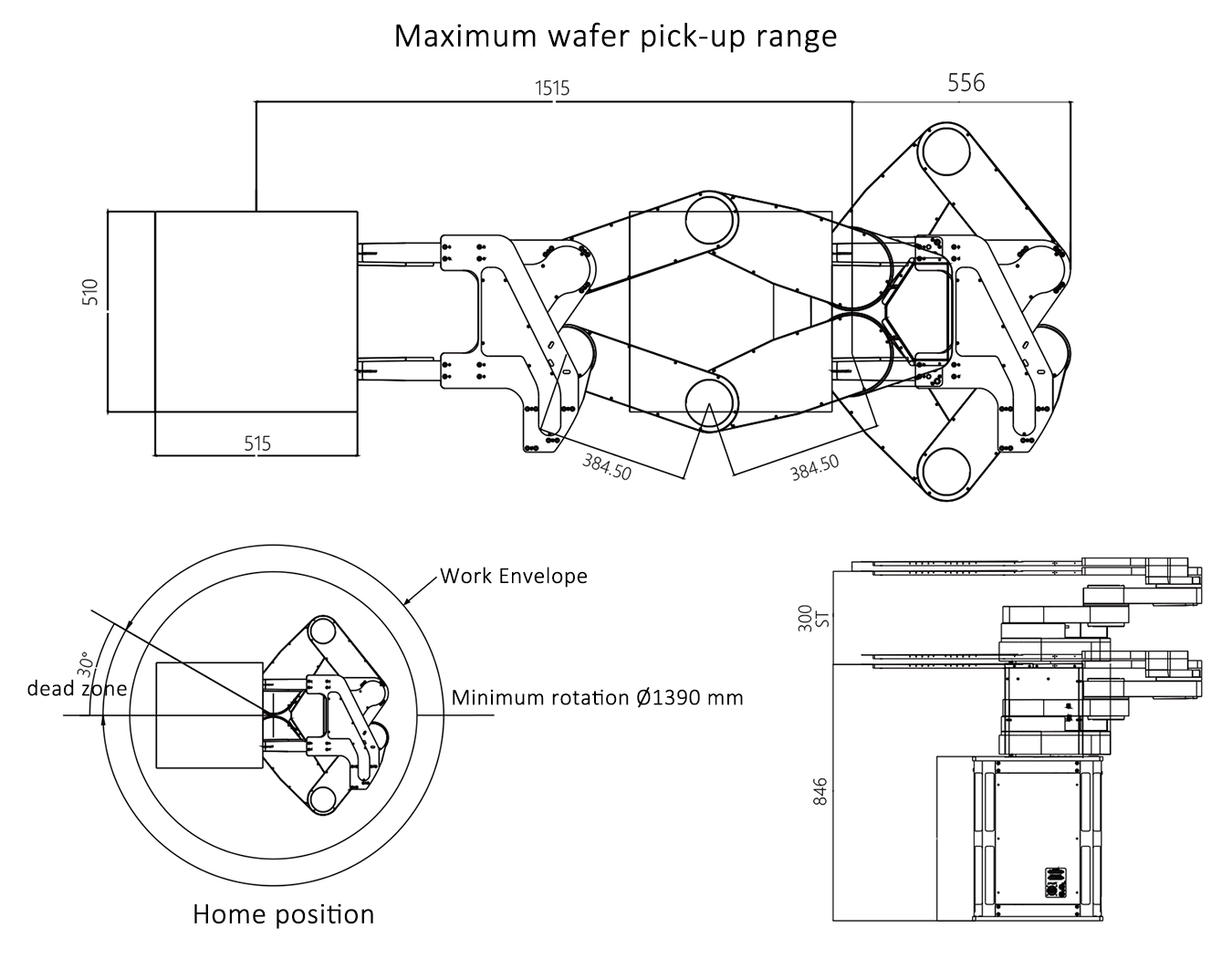

Movable Range (Arm Travel Distance)	Arm	Theta Rotation	Lifting:
	376/500/760mm	340°	Z300/ZD500/ZD700
Transfer Speed （Average Speed）	550mm/S	200°/S	300mm/S
Arm Type	Dual Arms
Handling Height	890mm
Repeatability Accuracy	Within ±0.2mm
Communication Protocol	HEX/ASCII
Communication Method	EtherNet/RS232
Cleanliness	Highest ISO Class 1
Facility Requirements	Power: 220V, 10A Vacuum: -70~-90Kpa Positive Pressure: 0.1~0.5Mpa

Disclaimer: The appearance, specifications, performance descriptions, comparative data, and other information regarding the products displayed on this website are based on internal testing and experiments conducted in FORTREND’s laboratory. This information is for reference purposes only, and the final product may vary.
